Why It’s Essential to Upgrade your House Fuse Box

Why it’s crucial to upgrade your home’s electrical system

Upgrading your home’s electrical system is essential for ensuring both safety and functionality. Over time, our reliance on electrical appliances has grown, increasing the demand put on our electrical systems. New appliances, larger heating or air conditioning units, pools, and home automation systems have all contributed to this increased load.

Older fuse boxes, which may still rely on outdated fuses and circuit breakers, can become a safety hazard. They often fail to meet modern electrical standards and might not be equipped with necessary safety features like Residual Current Devices (RCDs) or Residual Current Breakers with Overcurrent protection (RCBOs). This can lead to a higher risk of electrical fires and even electric shocks.

Upgrading your fuse box isn’t just about adding capacity; it’s about ensuring your home’s safety and adapting your electrical system to the needs of today’s technology-driven world. Modern protection devices, offer comprehensive safeguards against various electrical faults.

It’s crucial to note that electrical system upgrades should always be carried out by licensed professionals to ensure compliance with Australian standards. This ensures your home meets the latest safety requirements and is equipped to handle the demands of modern living.

How Do Fuses and Circuit Breakers operate?

Understanding the components of your home’s fuse box, also known as a switchboard, is key to managing and safeguarding your household’s electrical supply. The fuse box typically consists of three main elements: the main switch, fuses(or circuit breakers), and the switchboard itself.

The main switch allows you to completely disconnect the electrical power to your house, useful in emergencies or when maintenance is needed. Fuses and Circuit breakers protect your home from electrical overloads by automatically cutting off power when excessive currents are detected, preventing potential damage and hazards. The switchboard, the main switch, fuses and circuit breakers, are the central unit for electricity distribution.

It’s important to note the difference between your switchboard and your electricity meter. The meter measures electricity usage, while the switchboard manages distribution and safety, ensuring your home’s electrical system operates safely and efficiently.

What are the limitations of Fuses and Miniature Circuit Breakers?

Traditional fuses and miniature circuit breakers(MCBs) are designed to protect against overcurrent by breaking the circuit when excess electricity is detected. A blown fuse or tripped circuit breaker can signal that you have a faulty appliance or that your electrical system is outdated and struggling to handle the current load.

According to AS/NZS 3000 Wiring Rules, specifically Clause 2.6.3.2, relying solely on older systems such as fuses and circuit breakers is no longer compliant for domestic installations. This clause mandates the inclusion of Residual Current Devices (RCDs) aka Safety Switches, in all final sub-circuits to enhance safety, preventing electric shocks and reducing the risk of fire by swiftly interrupting the power supply in fault conditions.

For homeowners experiencing issues where fuses blow, upgrading to a modern switchboard with integrated RCDs is crucial. This upgrade ensures compliance with electrical standards and improves the overall safety and efficiency of your home’s electrical system. A qualified electrician can replace your old fuse box to help manage electrical loads more effectively and diagnose any exisiting electrical faults in the process.

What is a better alternative?

Residual Current Breakers with Overcurrent protection (RCBOs) are safety devices critical for electrical safety. An RCBO combines the functions of a Residual Current Device (RCD) and a Miniature Circuit Breaker (MCB), providing comprehensive protection against both electric shock hazards and overcurrent issues in a single unit.

An RCBO is superior to fuses and standard circuit breakers in several ways. While fuses & MCBs protect against overcurrents, an RCBO goes further by also detecting and interrupting earth fault currents. This capability allows it to identify faulty appliances that might not trigger an MCB, preventing electric shocks and offering enhanced safety for both people and property.

The main benefits of RCBOs include:

• Quick disconnection: When a fault is detected, an RCBO rapidly disconnects the power supply, within milliseconds.
• Individual circuit protection: Unlike RCDs that may protect multiple circuits, RCBOs can be installed on individual circuits, preventing nuisance tripping of other circuits
• Dual protection: It safeguards against both electric shock hazards and overcurrent issues in a single unit.

These benefits make RCBOs an essential part of safeguarding modern electrical systems.

How to Determine if Your Home’s Electrical Capacity is enough for your growing needs?

When considering an upgrade to your home’s electrical system, it’s important to assess the suitability of your current fuse box in terms of compliance, capacity, and overall safety. These factors are critical in ensuring your electrical system can handle modern energy demands safely and efficiently.

The main considerations when inspecting your existing fuse box are:

• Cable size: The electrical current that your property can safely utilise will be limited by the size of your Service and Consumer Mains cables. It is typical for older boards with fuses to have conductor sizes between 4mm2 – 10mm2. The modern standard today is 25mm2 for Service Mains and 16mm2 for Consumer Mains.
• Service fuse rating: Older switchboards in NSW have service fuses rated between 30 – 60 amps. The standard today is 80 amps.
• Number of circuits: Ceramic fuses that frequently blow or are warm to the touch are providing clear indications of circuit overload.
• Number of phases: 3 phase supplies are often essential for homes with higher power requirements and high efficiency appliances such as pool pumps and EV charging.

What are the Signs it’s time to Replace Your Fuse Box?

If you’re encountering any of the following issues with your home’s electrical system, it might be time to consider a fuse box upgrade:

Frequent Tripping

If your circuit breaker trips more often than you’d like, it’s a clear indicator that your current system may be overloaded. This is more than just an inconvenience; it’s a sign your electrical system needs a review to handle your home’s power demands safely.

Overheating Wires

Should the area around your ceramic fuses feel warm, it’s urgent to have it inspected. Overheating can lead to severe problems, such as fires and suggests that your system is struggling to cope with the flow of electricity.

Lights Flickering

Regular flickering of lights can be more than just annoying; it indicates your electrical circuit is not providing a stable power supply, often due to an overloaded or ageing system.

A Burning Smell

Any burning odour coming from your fuse box is a serious warning sign. This should be addressed immediately by a professional to prevent potential fire risks.

Upgrading to a modern system equipped with Residual Current Breakers with Overcurrent protection (RCBOs) is crucial. RCBOs are designed to quickly cut off the power when a fault is detected, significantly reducing the risk of electric shock or fire. Integrating these devices into your electrical system isn’t just an upgrade; it’s a critical safety enhancement for your home.

What’s involved in installing a new house fuse box?

When considering the time required to upgrade your home’s electrical system, it’s crucial to factor in the unique aspects of your house and the skill level of the electrician. Here are some tailored scenarios that might apply to your situation:

Upgrading from a Standard Outdated Fuse Box

If your home is equipped with a combination of circuit breakers, fuses and fuse boxes, upgrading to a modern RCBO switchboard typically takes between 4-8 hours. This upgrade involves replacing the old fuse box with a modern switchboard that distributes electrical power more effectively and safely, accommodating the increased electrical demands of contemporary electrical devices.

Homes Older Than 25 Years with Outdated Mains

For homes that are more than 25 years old, there’s a high likelihood that the core components of the electrical system, including the mains cables, is outdated. Upgrading in such cases isn’t just about getting a replacement fuse box; it involves upgrading the old mains cables to ensure the system is safe and capable of handling increased power requirements. This comprehensive upgrade can between 8-10 hours and may include installing new Consumer Mains, Service Mains, RCBOs and earthing system.

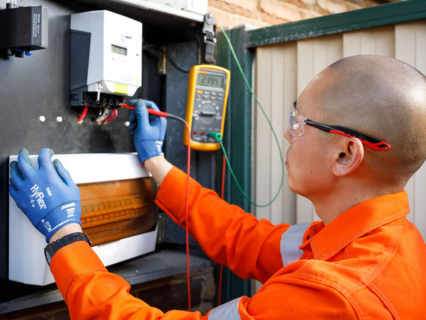

In both scenarios, the upgrade process also involves testing the electrical circuits to ensure they are not only safe but optimised for your home’s current and future electrical needs. A professional assessment by a licensed electrician will give you a clearer picture and help plan the upgrade more effectively.

Tips for maintaining your house fuse box

Homeowners should prioritise electrical safety by inspecting their electrical systems and promptly addressing any issues. Scheduling a safety evaluation with a professional electrician ensures the reliability and compliance of your electrical protection devices. These safety evaluations can prevent problems before they escalate, reducing the risk of electrical incidents.

In addition to these inspections, investing in safety measures like smoke detectors is crucial. Maintaining these devices and being aware of unusual changes in your electrical system, such as frequent blown fuses, can help catch and rectify potential hazards early. Understanding the basic functions and limitations of your chosen protection devices, whether fuses or circuit breakers also plays a key role in maintaining a safe electrical environment.
